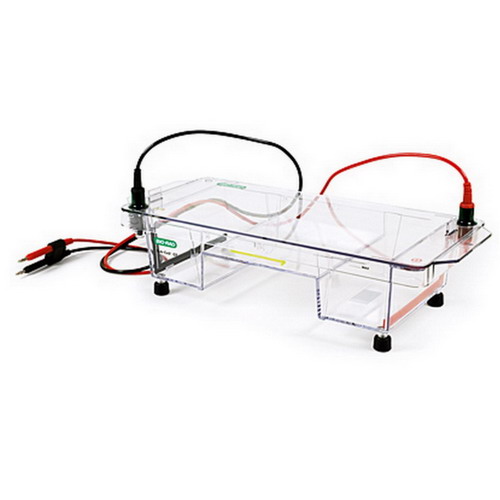

Bio-rad美國伯樂中型水平電泳槽Sub-Cell® GT Cell1704482

產品介紹：
重新設計的Sub-Cell GT電泳槽提供了更新功能，可使用電泳分離更加容易。在Sub-Cell系列產品中，Sub-Cell GT電泳槽是較通用的浸沒式水平電泳槽。由于Sub-Cell GT電泳槽可提供較好的凝膠長度，樣本梳和分離模式選擇，因此它非常適合DNA轉印和RNA轉印實驗方案。在25厘米距離內較多可分解30個樣本。使用四排電泳梳，電泳槽將較多運行120個分析樣本。

Bio-rad美國伯樂中型水平電泳槽Sub-Cell® GT Cell1704482

所有子細胞GT電泳槽都包括一個緩沖液槽，一個帶電纜的安全蓋，一個水準氣泡和多個梳（15孔和20孔）。還提供了其他附件的系統配置;有關更多詳細信息，請參見“小細胞GT完整系統選擇指南”。

Bio-rad美國伯樂中型水平電泳槽Sub-Cell® GT Cell1704482

功能

QuickSnap *電極拆卸方便，簡化了清潔工作
底座側面的箭頭指示運行方向，可確保凝膠的方向正確
彩色編碼的帶標記的電極和帶標記的底座確保蓋子可以正確安置在底座上
通過基部上的拉環，可輕松移除蓋子，從而減少緩沖液溢出量，還可防止蓋位置不正確
反向兼容設計允許將這些電泳槽用于較早型號的組件
透明塑料結構，可以方便地查看樣本
具有熒光標尺的紫外透明凝膠托盤
用于直接在槽中灌制您自己的凝膠的凝膠灌制口，或者用于無膠條式灌制的可選制膠盤
可滿足一切需求的梳（與多通道吸管兼容的梳，高度固定的嵌入式梳，可調節高度的梳和制備梳）

Bio-rad美國伯樂中型水平電泳槽Sub-Cell® GT Cell1704482

Sub-Cell GT完整系統：

貨號	澆注門	凝膠制膠盤	UVTP托盤				PowerPac基本電源
貨號	澆注門	凝膠制膠盤	15 x 10	15 x 15 *	15 x 20	15 x 25	PowerPac基本電源
子電池GT系統
170-4401			•
170-4402	•			•
170-4403					•
170-4404						•
170-4481		•	•
170-4482	•	•		•
170-4483		•			•
170-4484		•				•
164-0302	•	•		•			•
* 15 x 15厘米樣品盤允許使用澆注口在電泳槽中澆注凝膠。可使用制膠盤灌注其他尺寸的凝膠。

Sub-Cell GT電選繩選擇指南：

貨號	孔數量	高度	厚度	寬度孔	長度牙齒	體積（在5毫米深凝膠中）
Sub-Cell GT系統的梳
170-4449	三十	固定	1.5毫米	2.7毫米	14毫米	20.25μl
170-4344	三十	可調	1.5毫米	2.7毫米	19.2毫米	20.25μl
170-4447	20	固定	0.75毫米	5毫米	15毫米	18.75微升
170-4448	20	固定	1.5毫米	5毫米	15毫米	37.5微升
170-4321	20	可調	0.75毫米	4.8毫米	19.1毫米	17μl
170-4322	15	可調	1.5毫米	4.8毫米	19.1毫米	34μl
170-4445	15	固定	0.75毫米	6毫米	15毫米	22.5微升
170-4446	15	固定	1.5毫米	6毫米	15毫米	45μl
170-4323	15	可調	0.75毫米	5.5毫米	19.1毫米	21μl
170-4324	15	可調	1.5毫米	5.5毫米	19.1毫米	42μl
170-4443	10	固定	0.75毫米	10毫米	14毫米	37.5微升
170-4444	10	固定	1.5毫米	10毫米	14毫米	75μl
170-4325	10	可調	0.75毫米	9.9毫米	19.1毫米	37μl
170-4326	10	可調	1.5毫米	9.9毫米	19.1毫米	74μl

Sub-Cell GT系統的制備梳
170-4442	4制備	固定	1.5毫米	27毫米	14毫米	202μl
	2參考			3毫米		22μl
170-4441	2制備	可調	1.5毫米	50毫米	14毫米	375μl
	2參考			4毫米		30μl
170-4440	1制備	固定	1.5毫米	106毫米	20毫米	795μl
	2參考			4毫米		30μl
170-4328	1制備	可調	3毫米	106毫米	19.1毫米	1,590μl
	2參考			4毫米		60μl

用于Sub-Cell GT系統的，與多通道移液器相兼容的電泳梳
170-4456	26	固定	0.75毫米	3毫米	15毫米	11.25μl
170-4457	26	固定	1.5毫米	3毫米	15毫米	22.5微升
170-4454	18	固定	0.75毫米	3毫米	14毫米	11.25μl
170-4455	18	固定	1.5毫米	3毫米	14毫米	22.5微升
170-4452	14	固定	0.75毫米	6毫米	20毫米	22.5微升
170-4453	14	固定	1.5毫米	6毫米	20毫米	45μl
170-4450	10	固定	0.75毫米	6毫米	14毫米	22.5微升
170-4451	10	固定	1.5毫米	6毫米	14毫米	45μl

技術參數：

電泳槽尺寸（寬x長x高）	18 x 40.5 x 9.4厘米
凝膠托盤尺寸（OD）（寬x長）	15 x 10厘米 15 x 15厘米 15 x 20厘米 15 x 25厘米
是否支持ReadyAgarose™凝膠	否
樣本通量	1-120
基本緩沖液需要量	?1 L
緩沖液再循環	否
溴酚藍遷移	?3.0厘米/小時（75伏下）

訂貨信息：

	Sub-Cell GT System 1704401 Horizontal electrophoresis system, includes 15- and 20-well combs, 15 x 10 cm UV-transparent tray		Sub-Cell GT System 1704402 Horizontal electrophoresis system, includes 15- and 20-well combs, 15 x 15 cm UV-transparent tray, casting gates
	Sub-Cell GT System 1704403 Horizontal electrophoresis system, includes 15- and 20-well combs, 15 x 20 cm UV-transparent tray		Sub-Cell GT System 1704404 Horizontal electrophoresis system, includes 15- and 20-well combs, 15 x 25 cm UV-transparent tray
	Sub-Cell GT System 1704481 Horizontal electrophoresis system, includes 15- and 20-well combs, 15 x 10 cm UV-transparent tray, gel caster		Sub-Cell® GT System 1704482 Horizontal electrophoresis system, includes 15- and 20-well combs, 15 x 15 cm UV-transparent tray, casting gates, gel caster
	Sub-Cell GT System 1704483 Horizontal electrophoresis system, includes 15- and 20-well combs, 15 x 20 cm UV-transparent tray, gel caster		Sub-Cell® GT System 1704484 Horizontal electrophoresis system, includes 15- and 20-well combs, 15 x 25 cm UV-transparent tray, gel caster

梳子訂購：

	30-Well Comb 1704449 Pkg of 1, 14 cm wide, 1.5 mm thick, fixed-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray		30-Well Comb 1704344 Pkg of 1, 14 cm wide, 1.5 mm thick, adjustable-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, requires comb holder (#170-4320)
	20-Well Comb 1704447 Pkg of 1, 14 cm wide, 0.75 mm thick, fixed-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray		20-Well Comb 1704448 Pkg of 1, 14 cm wide, 1.5 mm thick, fixed-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray
	20-Well Comb 1704321 Pkg of 1, 14 cm wide, 0.75 mm thick, adjustable-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, requires comb holder (#170-4320)		20-Well Comb 1704322 Pkg of 1, 14 cm wide, 1.5 mm thick, adjustable-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, requires comb holder (#170-4320)
	15-Well Comb 1704445 Pkg of 1, 14 cm wide, 0.75 mm thick, fixed-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray		15-Well Comb 1704446 Pkg of 1, 14 cm wide, 1.5 mm thick, fixed-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray
	15-Well Comb 1704323 Pkg of 1, 14 cm wide, 0.75 mm thick, adjustable-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, requires comb holder (#170-4320)		15-Well Comb 1704324 Pkg of 1, 14 cm wide, 1.5 mm thick, adjustable-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, requires comb holder (#170-4320)
	10-Well Comb 1704443 Pkg of 1, 14 cm wide, 0.75 mm thick, fixed-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray		10-Well Comb 1704444 Pkg of 1, 14 cm wide, 1.5 mm thick, fixed-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray
	10-Well Comb 1704325 Pkg of 1, 14 cm wide, 0.75 mm thick, adjustable-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, requires comb holder (#170-4320)		10-Well Comb 1704326 Pkg of 1, 14 cm wide, 1.5 mm thick, adjustable-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, requires comb holder (#170-4320)
	Preparative Comb for Sub-Cell and Wide Mini-Sub Cell Systems 1704442 Pkg of 1, 1.5 mm thick, preparative comb with 4 preparative and 2 reference wells, fixed height, must use with GT gel tray		Preparative Comb for Sub-Cell and Wide Mini-Sub Cell Systems 1704441 Pkg of 1, 1.5 mm thick, preparative comb with 2 preparative and 2 reference wells, adjustable height
	Preparative Comb for Sub-Cell and Wide Mini-Sub Cell Systems 1704440 Pkg of 1, 1.5 mm thick, preparative comb with 1 preparative and 2 reference wells, fixed height, must use with GT gel tray		Preparative Comb for Sub-Cell and Wide Mini-Sub Cell Systems 1704328 Pkg of 1, 3 mm thick, preparative comb with 1 preparative and 2 reference wells, adjustable height, requires comb holder (#170-4320)
	Multichannel Pipet–Compatible Comb 1704456 Pkg of 1, 0.75 mm thick, fixed height 26-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray		Multichannel Pipet–Compatible Comb 1704457 Pkg of 1, 1.5 mm thick, fixed height 26-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray
	Multichannel Pipet–Compatible Comb 1704454 Pkg of 1, 0.75 mm thick, fixed height 18-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray		Multichannel Pipet–Compatible Comb 1704455 Pkg of 1, 1.5 mm thick, fixed height 18-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray
	Multichannel Pipet–Compatible Comb 1704452 Pkg of 1, 0.75 mm thick, fixed height 14-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray		Multichannel Pipet–Compatible Comb 1704453 Pkg of 1, 1.5 mm thick, fixed height 14-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray
	Multichannel Pipet–Compatible Comb 1704450 Pkg of 1, 0.75 mm thick, fixed height 10-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray		Multichannel Pipet–Compatible Comb 1704451 Pkg of 1, 1.5 mm thick, fixed height 10-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray

配件：

	Gel Caster 1704412 Pkg of 1, full size, horizontal electrophoresis agarose gel caster, for use with Sub-Cell GT systems		Sub-Cell GT UV-Transparent Gel Tray 1704416 Pkg of 1, 15 x 10 cm gel tray, 2 slots for fixed-height combs; can be used with wide Mini-Sub cell GT cell, compatible with DNA Sub-Cell system
	Sub-Cell GT UV-Transparent Gel Tray 1704417 Pkg of 1, 15 x 15 cm gel tray, allows casting gels in cells using casting gates, for use with Sub-Cell GT systems		Sub-Cell GT UV-Transparent Gel Tray 1704418 Pkg of 1, 15 x 20 cm gel tray, for use with Sub-Cell GT systems
	Sub-Cell GT UV-Transparent Gel Tray 1704419 Pkg of 1, 15 x 25 cm gel tray, for use with Sub-Cell GT systems		Sub-Cell GT Casting Gates 1704415 Pkg of 2, horizontal agarose gel electrophoresis casting gates, for use with Sub-Cell GT systems
	Comb Holder 1704320 Pkg of 1, horizontal electrophoresis comb holder, for use with Sub-Cell and wide Mini-Sub cell adjustable-height combs		Sub-Cell GT Anode (Red), QuickSnap Electrode Assembly 1704392 Pkg of 1, electrode assembly for use with Sub-Cell GT systems, 2009 model
	Sub-Cell GT Cathode (Black), QuickSnap Electrode Assembly 1704393 Pkg of 1, electrode assembly for use with Sub-Cell GT systems, 2009 model		Sub-Cell GT Anode (Red) Electrode Assembly 1704413 Pkg of 1, horizontal agarose gel electrophoresis electrode assembly, for use with Sub-Cell GT systems
	Sub-Cell GT Cathode (Black) Electrode Assembly 1704414 Pkg of 1, horizontal agarose gel electrophoresis electrode assembly, for use with Sub-Cell GT systems
